Prihoda SquAire Tex
Prihoda has developed the SquAireTex ceiling tile air diffuser for applications with lay-in grid ceilings. Our SquAireTex diffusers offer a range of air distribution options, including gently swirling the air around the room or diffusing it in one or more specific directions.
Made from an aluminium frame and lightweight flame retardant polyester fabric, they weigh no more than the tile they replace. This means no additional suspension support is required – saving you money and time.

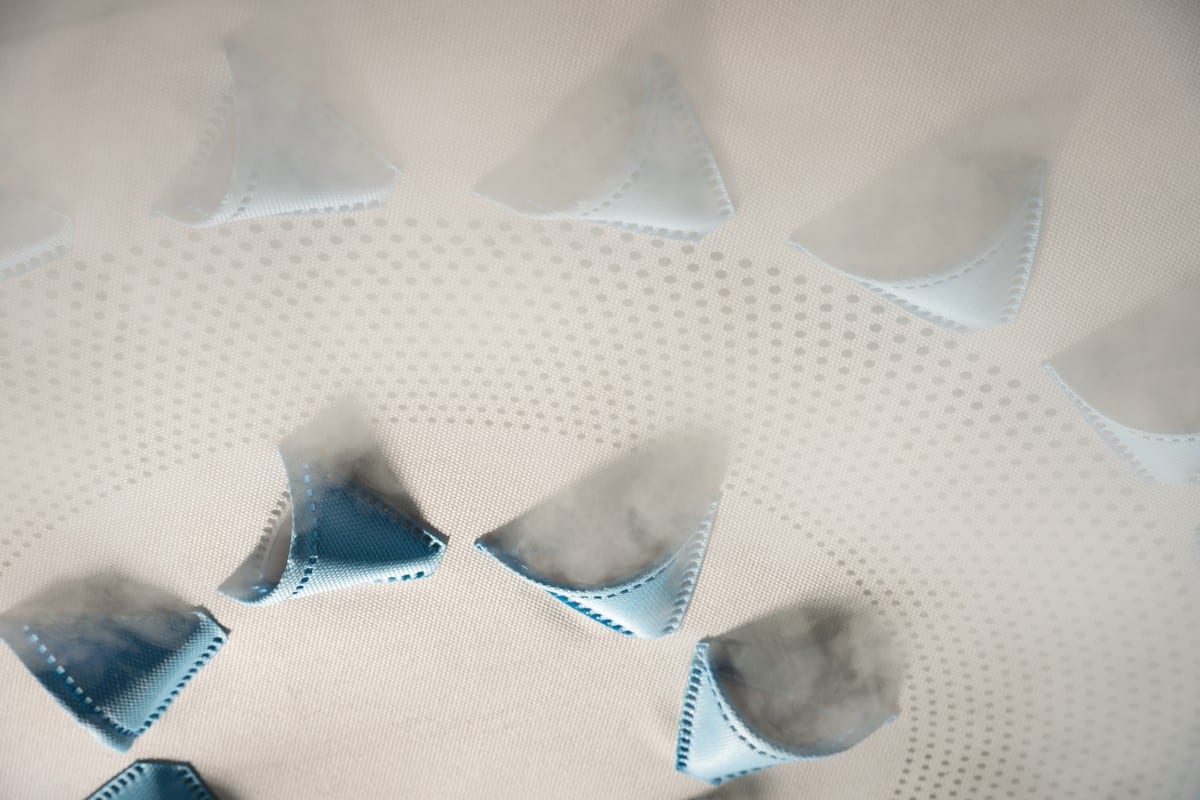

The supply air passes through specially designed openings in the fabric. These can be either laser-cut perforations or fabric pockets sonic welded to the fabric.

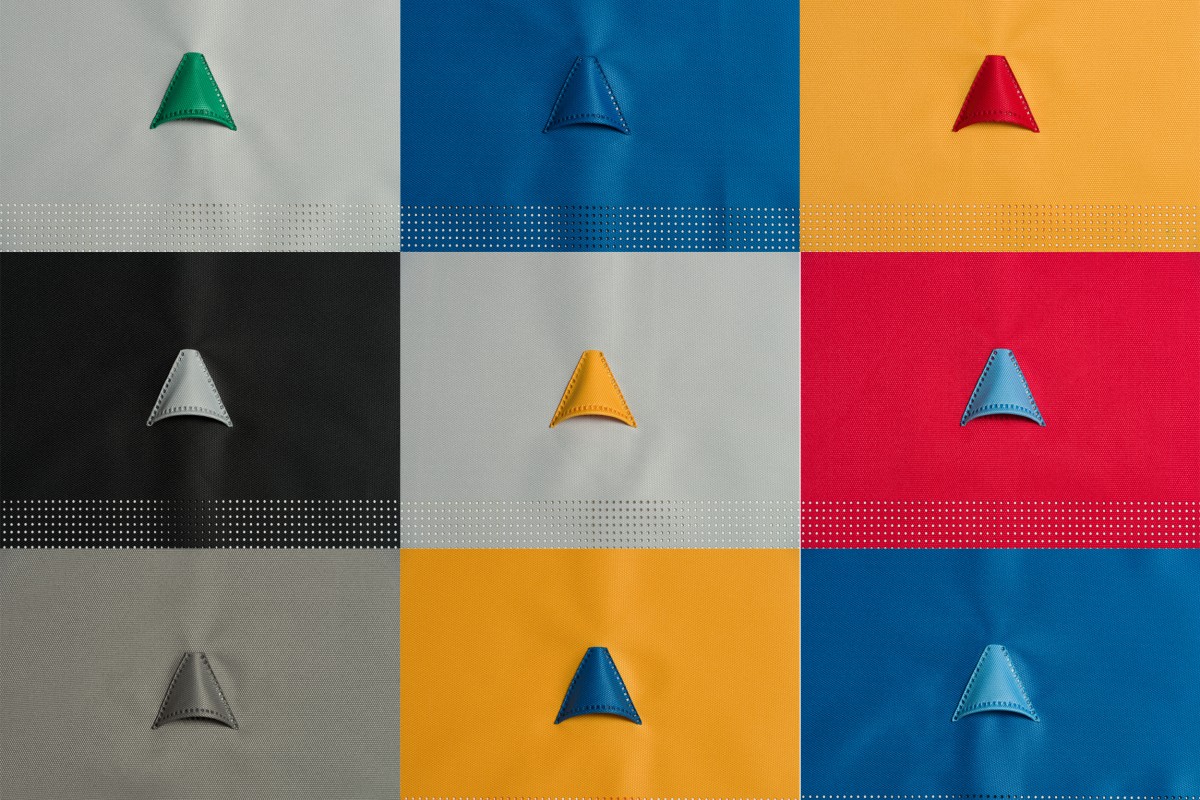

There are 9 stock colours available at no extra cost. Mix and match material and pocket colours to create dozens of different colour combinations!

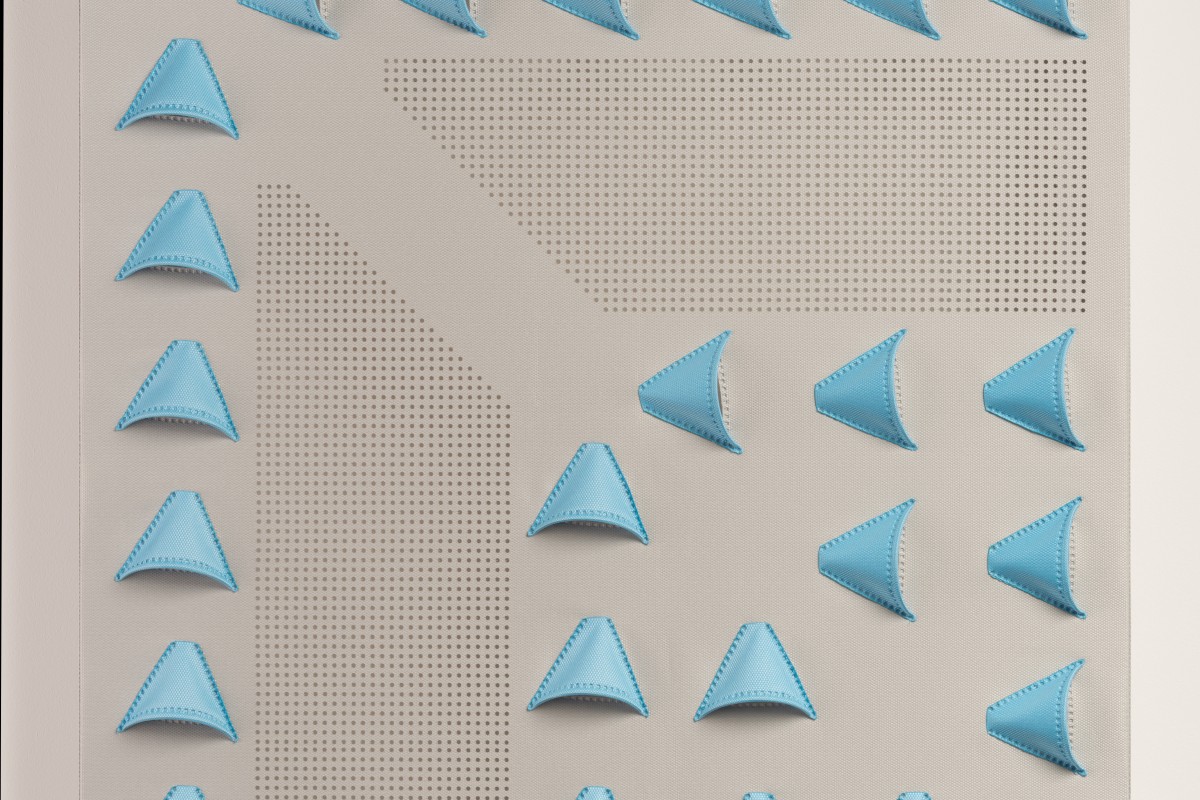

We have several textile ceiling air diffuser designs, from the most popular swirl, to one or two-direction and corner flow options.
We have also developed a diffuse low-velocity grille and a return air grille. This incorporates an additional aluminium frame above the ceiling to keep the plenum box open under negative pressure.
The Prihoda SquAireTex diffusers are built around an aluminium frame using our Classic flame-retardant material.

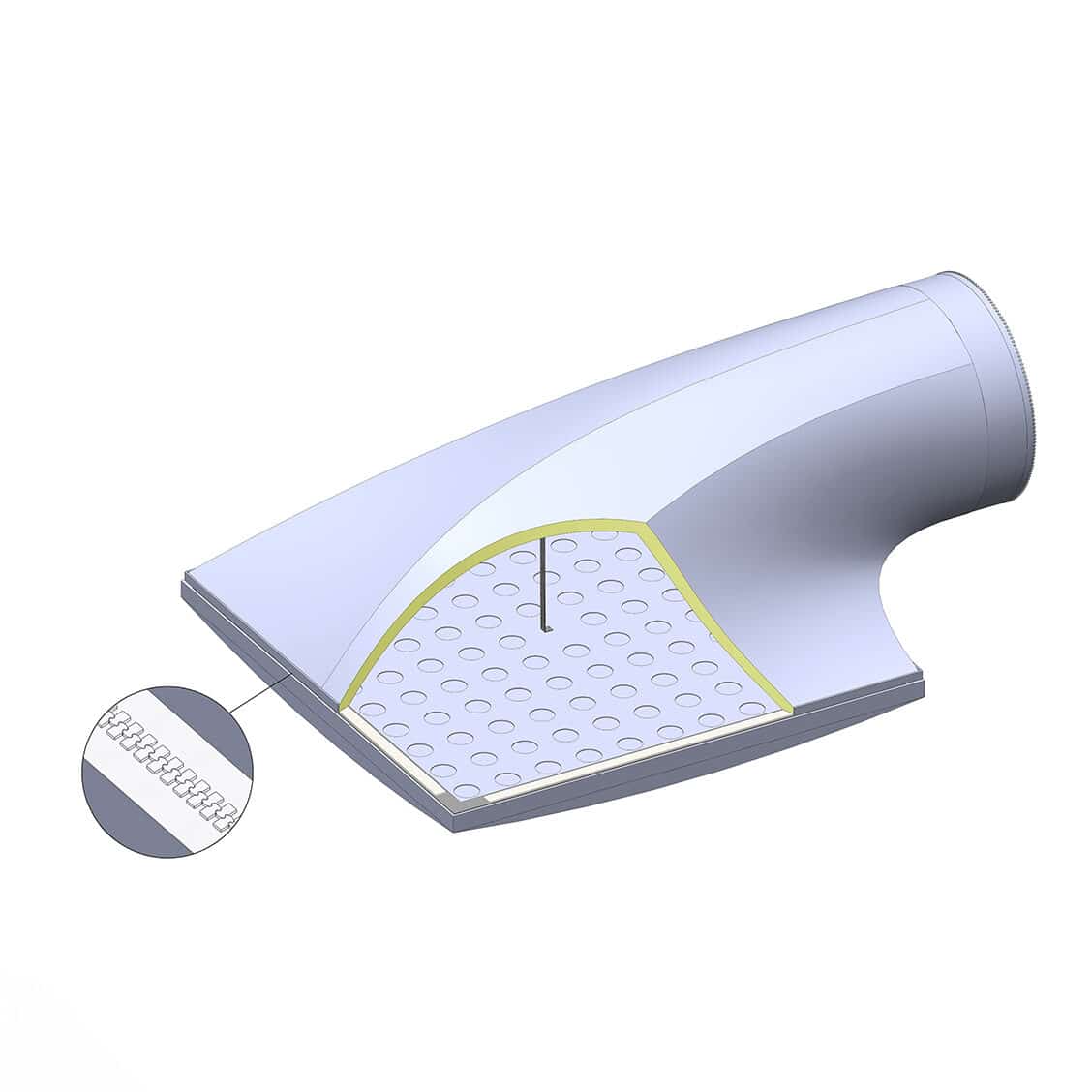

The diffuser section zips to a plenum box hood with a round inlet spigot complete with a clamp. An internally mounted equalisation plate ensures that the air is distributed uniformly across the diffuser, resulting in beautifully even airflow through the diffuser and into the occupied space. We have designed SquAireTex to provide optimum flow with minimum pressure loss.
The plenum box comes as standard in our Classic material. If you’re planning on cooling below dew point, SquAireTex can be ordered as an insulated option to avoid condensation.
The Prihoda SquAireTex diffusers are built around an aluminium frame using our Classic flame-retardant material.
The diffuser section zips to a plenum box hood with a round inlet spigot complete with a clamp. An internally mounted equalisation plate ensures that the air is distributed uniformly across the diffuser, resulting in beautifully even airflow through the diffuser and into the occupied space. We have designed SquAireTex to provide optimum flow with minimum pressure loss.
The plenum box comes as standard in our Classic material. If you’re planning on cooling below dew point, SquAireTex can be ordered as an insulated option to avoid condensation.
Why should you consider using Prihoda SquAireTex?
